Conveyor belt scales play a critical role in industries that handle bulk materials through continuous processes. By measuring material weight directly on a moving conveyor, these systems provide real-time insight into material flow, throughput, and production performance without interrupting operations. This article offers a detailed technical overview of conveyor belt scales, explaining how they work, what affects their accuracy, where they are applied, and why they are essential in modern automated industrial systems.

What are conveyor belt scales and why are they used in continuous processes?

Conveyor belt scales are measurement systems designed to determine the mass flow and total mass of bulk material transported on a conveyor belt without interrupting the process. Their primary value lies in enabling continuous measurement, which is fundamentally different from static or batch weighing.

They are used because continuous material handling introduces challenges that other weighing methods cannot solve:

• Continuous weight measurement without stopping production: In many industrial processes, stopping the conveyor to weigh material would disrupt upstream feeding systems and downstream processing equipment.
• Visibility into dynamic material flow: Material flow on a conveyor is rarely constant.
• Accurate material accountability over time: By continuously totalizing weight, conveyor belt scales provide cumulative material data that supports production accounting.
• Foundation for automated process control: Weight data from conveyor belt scales can be used as a control variable, enabling closed-loop control of feeders, crushers, or dosing systems based on actual material flow rather than assumptions.


How do conveyor belt scales work from a system perspective?

From a system perspective, conveyor belt scales convert mechanical force and motion into digital mass flow data through a sequence of tightly coupled measurements.

The process can be broken down into the following functional steps:

• Transferring material load to the weighing structure: As material travels on the belt, its weight is transferred through the belt to the weighing idlers.
• Converting mechanical force into electrical signals: Load cells deform slightly under load. This deformation changes their electrical resistance, producing an analog signal proportional to the applied force.
• Measuring real belt speed under operating conditions: Conveyor speed is rarely perfectly constant. A speed sensor continuously measures the actual belt velocity, capturing variations caused by load changes, drive slip, or control adjustments.
• Calculating instantaneous mass flow: The system multiplies belt load by belt speed to calculate instantaneous mass flow. This calculation reflects the real-time rate at which material is moving through the process.
• Integrating flow to obtain total mass: The integrator sums the flow rate over time, producing cumulative weight data that can be used for reporting, control, or analysis.

The process can be broken down into the following functional steps

What types of conveyor belt scales are used and how do they differ in practice?

Different conveyor belt scale designs exist because material behavior and conveyor dynamics vary widely across applications.

Common types include:

• Single-idler belt scales: These systems measure load at a single point. Because they sample a very short section of the belt, they are more sensitive to uneven material distribution, belt vibration, and idler condition.
• Dual-idler belt scales: By measuring across two idlers, these systems average the load over a longer belt section. This reduces the impact of localized loading irregularities and improves measurement stability, making them suitable for general industrial monitoring.
• Multi-idler belt scales: Multi-idler systems extend the weighing zone further, capturing a more representative sample of the material load. This significantly improves accuracy and repeatability, especially in high-throughput or variable-load applications.

The key difference in practice is how much of the belt’s behavior is averaged during measurement.

What mechanical factors influence conveyor belt scale accuracy?

Mechanical conditions have a direct and often underestimated impact on accuracy.

Key factors include:

• Belt alignment and tracking: A belt that wanders or runs off-center shifts the load distribution across idlers. This changes how force is applied to the load cells, introducing systematic error.
• Belt tension uniformity: Uneven tension alters how the belt presses against idlers. Higher tension can artificially increase measured load, while low tension can reduce force transfer consistency.
• Idler geometry and condition: Worn bearings, seized rollers, or misaligned idlers introduce friction and vibration, which contaminate the load signal and reduce repeatability.
• Structural rigidity of the conveyor: A flexible or poorly supported conveyor frame can bend under load, changing the force path between the belt and load cells.

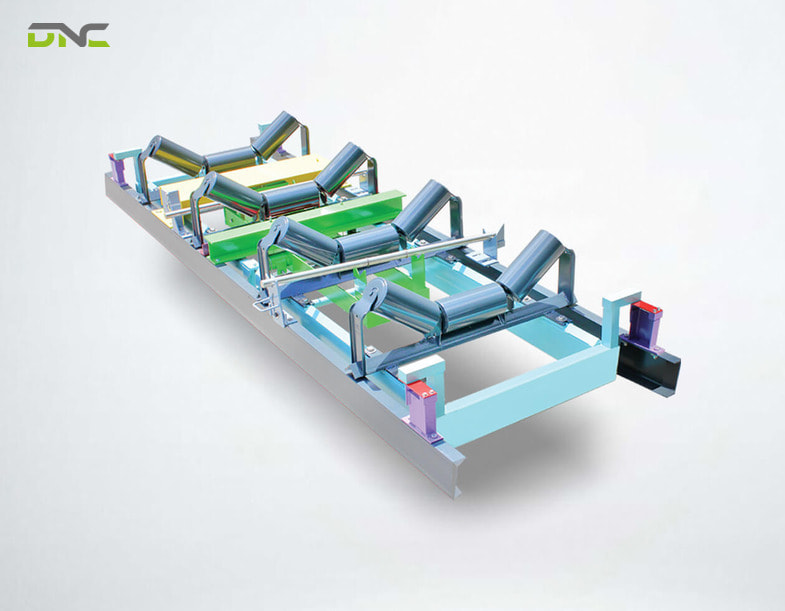

Mechanical conditions have a direct and often underestimated impact on accuracy

What operational factors influence conveyor belt scale accuracy?

Even with perfect mechanics, operating conditions play a major role.

Key operational factors include:

• Belt speed stability: Rapid speed fluctuations can introduce calculation errors if speed measurement resolution or response time is insufficient.
• Material loading consistency: Material that is unevenly distributed across the belt width or length causes load variations that short weighing zones cannot fully average.
• Material property variability: Changes in bulk density, moisture content, or particle size affect how material settles on the belt, influencing force transfer dynamics.

What environmental factors affect long-term performance?

Environmental conditions often determine how accuracy degrades over time.

Critical environmental influences include:

• Vibration from adjacent equipment: Crushers, mills, or motors can introduce vibration that interferes with load cell signals.
• Temperature variation: Temperature changes affect both mechanical components and electronic sensors, leading to signal drift.
• Dust, moisture, and material buildup: Accumulated material alters idler weight and friction characteristics, changing the effective load measured by the system.

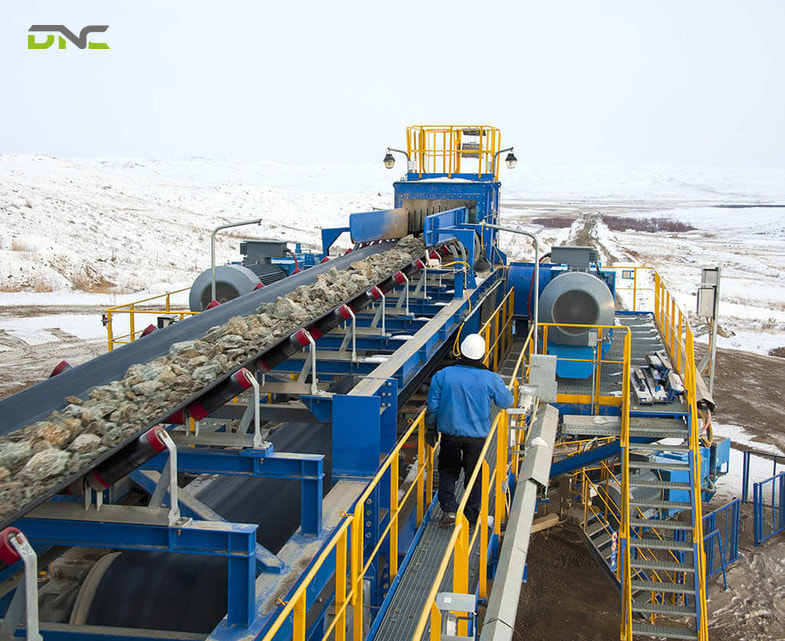

Environmental conditions often determine how accuracy degrades over time

Why is calibration fundamental to reliable conveyor belt scale operation?

Calibration aligns the system’s measured output with physical reality.

It is essential because:

• Mechanical systems change over time: Wear, belt replacement, and idler maintenance all alter load transfer characteristics.
• Sensors and electronics drift: Even high-quality sensors experience gradual drift due to temperature cycling and aging.
• Operating conditions evolve: Changes in material type, throughput, or conveyor speed require recalibration to maintain accuracy.

Calibration typically includes zero calibration and span or material testing under real operating conditions.

Where are conveyor belt scales most critical in industrial systems?

Conveyor belt scales are most critical where material flow directly impacts cost, quality, or efficiency.

They are especially important in:

• Mining and mineral processing for throughput control
• Cement and aggregate plants for raw material dosing
• Power generation for fuel consumption tracking
• Bulk manufacturing for continuous material handling

In these systems, inaccurate weight data can lead to process instability, material loss, or poor production decisions.

Conveyor belt scales are most critical where material flow directly impacts cost, quality, or efficiency
