Shuttle-Based ASRS is transforming warehouse operations in Malaysia through intelligent automation and high-speed material handling. Using autonomous shuttles and vertical lifts, this system enables efficient multi-level storage, rapid retrieval, and precise inventory control. It maximizes space utilization while reducing labor dependency, making it ideal for industries facing workforce shortages and rising logistics costs. As Malaysia advances toward Industry 4.0, shuttle-based ASRS is becoming a key enabler of smart, scalable, and sustainable warehouse automation.

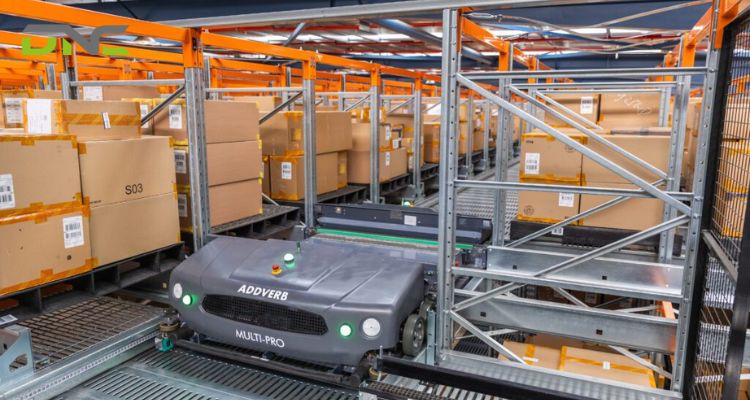

What Is a Shuttle-Based ASRS?

A shuttle-based Automated Storage and Retrieval System (ASRS) is an advanced warehousing solution that uses autonomous, battery-powered shuttle cars to store and retrieve goods. These shuttles move horizontally along storage racks and work in combination with vertical lifts for multi-level access. This configuration enables high-density, rapid, and precise material handling, ideal for operations managing totes, cartons, cases, or pallets in compact warehouse environments

How a Shuttle-Based ASRS Works?

The shuttle-based ASRS operates through a synchronized process of automated transport and retrieval. Its core working principle revolves around efficient coordination between conveyors, lifts, and shuttle cars all controlled by a Warehouse Control System (WCS). This integration ensures a seamless flow of goods from storage to dispatch.

The operation process includes:

• Storage: Items are loaded onto an infeed conveyor, then transported by a vertical lift to the designated rack level.
• Placement/Retrieval: A shuttle moves along the rack, using a fork or telescopic arm to store or retrieve goods.
• Output: The retrieved item is sent back via the lift to an outfeed conveyor or a Goods-to-Person (G2P) picking station.

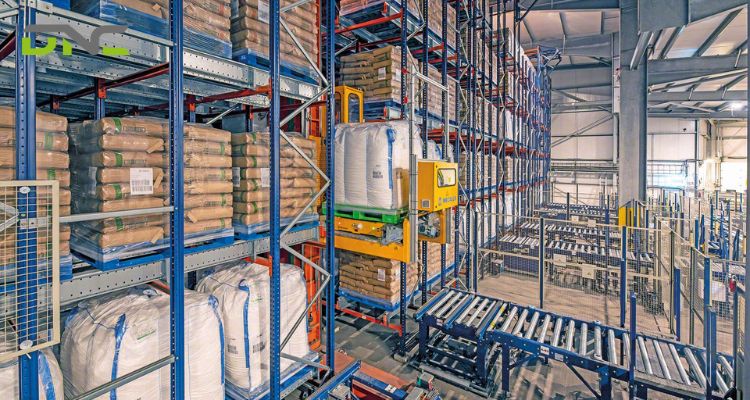

How a Shuttle-Based ASRS Works?

What are the Key Components of a Shuttle-Based System

A typical shuttle-based ASRS is built from interconnected components:

• Racks: Specifically designed, high-density racking with integrated rails for the shuttles. These systems can be configured for deep-lane storage.
• Storage Shuttle (or Pallet Shuttle System): The autonomous vehicles that move horizontally within the rack levels. They are typically electric/battery-powered and communicate wirelessly with the Warehouse Control System (WCS).
• Lift System: Vertical conveyors or lifts positioned at the end of the aisles to move the goods (totes, cases, or pallets) and, in some designs, the shuttles themselves between different storage levels.
• Conveyors: Infeed and outfeed conveyors that transport goods between the production/receiving area and the ASRS interface.
• Software: A WCS/WMS that controls all movement, optimizes storage locations, and tracks inventory in real-time.

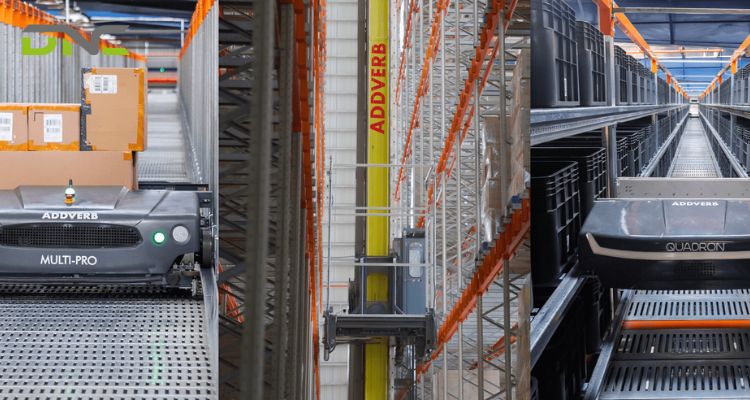

What are the Key Components of a Shuttle-Based System

How Shuttle-Based ASRS Differs from Crane-Based or Mini-Load ASRS?

Shuttle-based ASRS offers greater speed, scalability, and flexibility compared to crane-based and mini-load systems, making it ideal for modern, high-throughput warehouse operations in Malaysia.

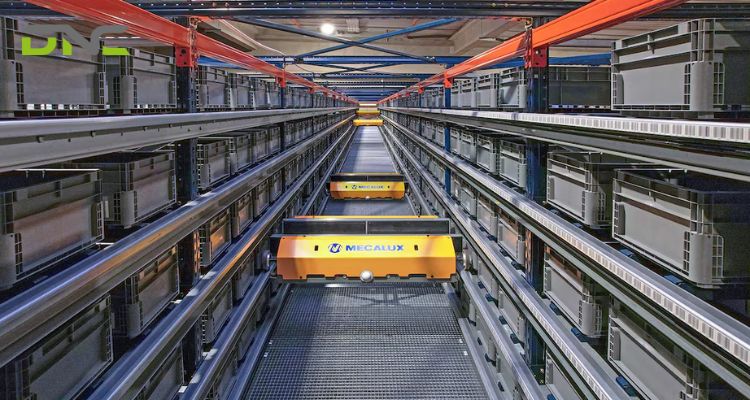

How Shuttle-Based ASRS Differs from Crane-Based or Mini-Load ASRS?

What are the Advantages of Shuttle-Based ASRS for Malaysian Industries?

Speed, Scalability, and High Throughput Performance

Shuttle-based systems offer the highest throughput rate among ASRS types for handling cases and totes. This high-speed ASRS is achieved because each level can have its own shuttle, allowing hundreds of simultaneous storage and retrieval cycles. Its modular warehouse design means capacity and speed can be increased independently by adding more racks for storage or more shuttles for speed – making it perfectly suited for smart warehouse operations in Malaysia with variable and high-peak demands, such as e-commerce.

Space Optimization and Energy Efficiency

By eliminating the need for wide aisles required by forklifts and operating in a compact, multi-level shuttle configuration, the system maximizes the space utilization Malaysia, dramatically increasing storage density. Modern shuttles use energy-efficient motors and regenerative braking, making them an energy-saving ASRS choice and a sustainable solution for warehouses dealing with rising operational costs.

Reduced Labor Dependency and Enhanced Accuracy

The shuttle system automates the most labor-intensive tasks—traveling, storing, and retrieving. This significantly reduces labor dependency and helps Malaysian businesses tackle the pervasive issue of labor shortage in manufacturing. Furthermore, the computer-controlled system ensures precise load handling and inventory tracking, leading to near-perfect pick accuracy and a substantial reduction in human error.

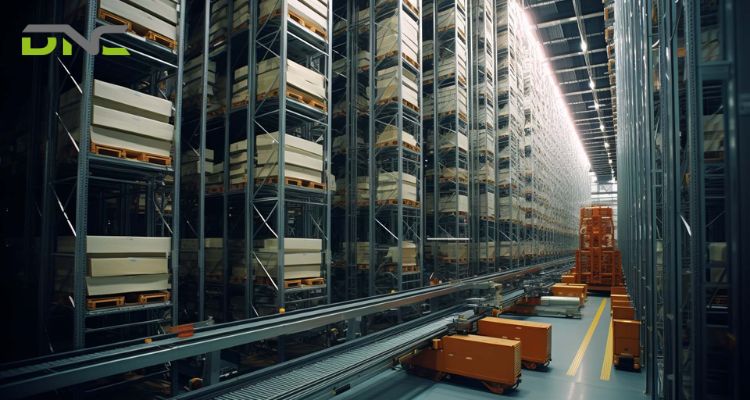

What are the Advantages of Shuttle-Based ASRS for Malaysian Industries?

Integration of Shuttle-Based ASRS with Industry 4.0 Technologies

IoT, Sensors, and Real-Time Data Monitoring

Shuttle-based ASRS are inherently data-driven warehouse systems. They are equipped with a smart sensor warehouse that constantly collect data on system status, load position, and performance. This real-time data is leveraged by IoT in logistics platforms for diagnostics, reporting, and predictive maintenance, ensuring high uptime.

Integration with WMS and ERP Systems

Seamless ERP integration and a robust Warehouse Management System (WMS) Malaysia are essential for a shuttle ASRS. The WMS dictates storage and retrieval strategies, optimizing inventory flow and location. The integration ensures accurate, real-time inventory tracking automation, providing a single source of truth for stock levels and order fulfillment status.

Why Choose DNC Automation as Your Shuttle ASRS Partner?

As a leading warehouse automation company and a total turnkey automation solutions provider, DNC Automation Malaysia is well-positioned as a reliable shuttle ASRS integrator. DNC’s value proposition includes:

• System Integration Expertise: DNC provides comprehensive, end-to-end solutions, encompassing consultation, design, hardware fabrication, and software integration (WMS/WCS).
• Local Support: With local engineering teams and branches, DNC ensures responsive maintenance, after-sales service, and local knowledge necessary for sustained system reliability.
• Focus on Industry 4.0: DNC aims to transform factories into SMART factories, ensuring their ASRS solutions are future-proofed with the latest IOT, SCADA, and robotics integration.
