With diverse specifications such as extension length from 6m to 18m, maximum load up to 500kg/m and transport speed from 0.3m/s to 1.5m/s, Telescopic Conveyor is gradually becoming an indispensable equipment in warehouses, logistics centers and factories. In this article, we will learn in detail about Telescopic Conveyor, from advantages, disadvantages to practical applications in each industry.

What is a telescopic conveyor?

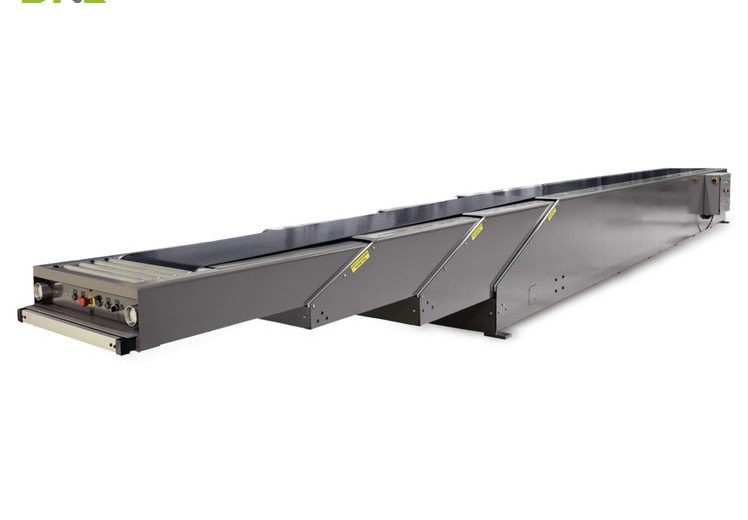

A telescopic conveyor is a type of conveyor system that can be extended and contracted in length, making it easy to transport goods over variable distances.

This conveyor is designed with sections that can be extended or shortened, like a telescope, providing flexibility in loading and unloading goods from transport vehicles such as trucks, containers, or storage areas.

Telescopic conveyors are commonly used in industries such as warehouses, airports, and distribution centers, where space optimization and increased work efficiency are required.

Telescopic Conveyor Specifications

• Maximum length: 6m to 15m, can be extended up to 18m or more depending on the design.
• Width: 400mm to 1,200mm
• Retractability: Can be retracted in length to save space when not in use, usually ranging from 3m to 5m.
• Load capacity: 100kg/m to 500kg/m
• Speed: 1.5 m/s
• Motor power: 0.75 kW to 7.5 kW
• Operating voltage: 220V or 380V
• Conveyor frame: Usually made of stainless steel, aluminum or carbon steel depending on the requirements for durability and corrosion resistance.
• Warranty: 12 months

What are the features and advantages of Telescopic Conveyor?

Telescopic Conveyor not only meets the needs of flexible goods movement but also brings outstanding benefits to factories and warehouses.

• Flexible extension and contraction: This helps optimize the space used and is flexible in jobs that require moving goods over long or short distances.
• Space saving: When not in use, the extension conveyor can be retracted, helping to save area and factory space. This is especially useful in environments with limited space.
• Easy to move and install: Telescopic Conveyor is often designed with mobile wheels or a simple installation mechanism system, making moving and installation easy and quick.
• Increased work efficiency: Thanks to its flexible adjustment and ease of operation, telescopic conveyors increase the efficiency of goods transportation, reduce loading and unloading time and optimize work processes in production lines and warehouses.
• Easy maintenance and servicing: Telescopic Conveyors are often designed with easily accessible components for maintenance and servicing. This helps to increase the life of the system and reduce downtime due to technical problems.

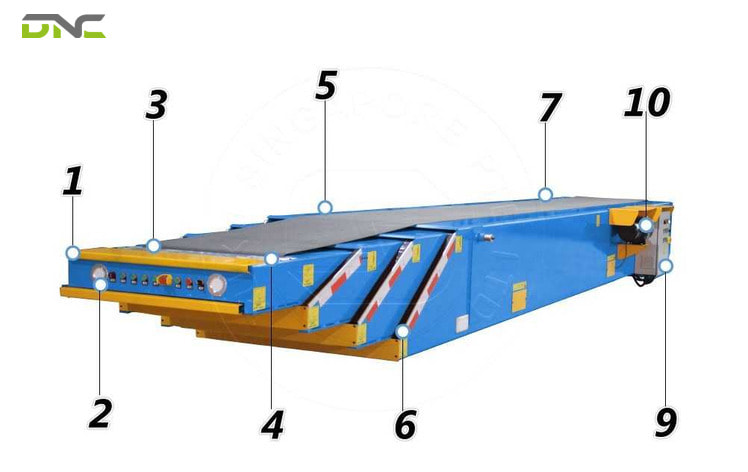

Advantages of Telescopic Conveyor

What are the disadvantages of Telescopic Conveyor?

Although Telescopic Conveyor offers many outstanding benefits in optimizing the process of transporting goods, not all systems are perfect. Like any technology, telescopic conveyors also have some disadvantages that should be considered before investing.

• Load limit: For goods that are too heavy, telescopic conveyors may not be able to handle it, requiring other conveyor solutions with higher load capacity.
• Regular maintenance required: Because of the mobile mechanism and parts that can be extended and retracted, Telescopic Conveyor requires regular maintenance to ensure smooth operation and no damage.
• Stable power supply required: If the power supply is unstable or there is a problem, the system may experience downtime.

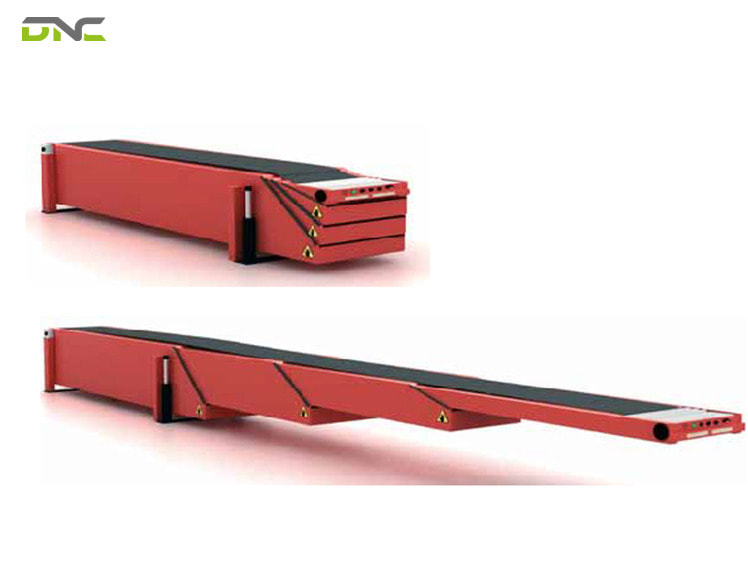

Telescopic conveyors also have some disadvantages that should be considered before investing

How are Telescopic Conveyors used in different industries?

Telescopic Conveyors can be widely used in many different industries due to their flexibility, length adjustment and space saving.

• Logistics and Warehousing: Helps move goods quickly from packaging areas to shipping or storage areas, optimizing space and workflow.
• Baggage transportation: Telescopic Conveyors are used to transport baggage from airports to passenger baggage claim areas.
• Food and Pharmaceutical Industry: Telescopic Conveyors help transport raw materials or products between production, packaging and distribution stages.
• Transporting raw materials and components: In manufacturing plants, Telescopic Conveyors can move raw materials or components between different production stages, minimizing downtime and increasing production efficiency.
• Receiving and handling goods: In distribution centers of retail chains, Telescopic Conveyor helps move goods from trucks to warehouses quickly and efficiently.

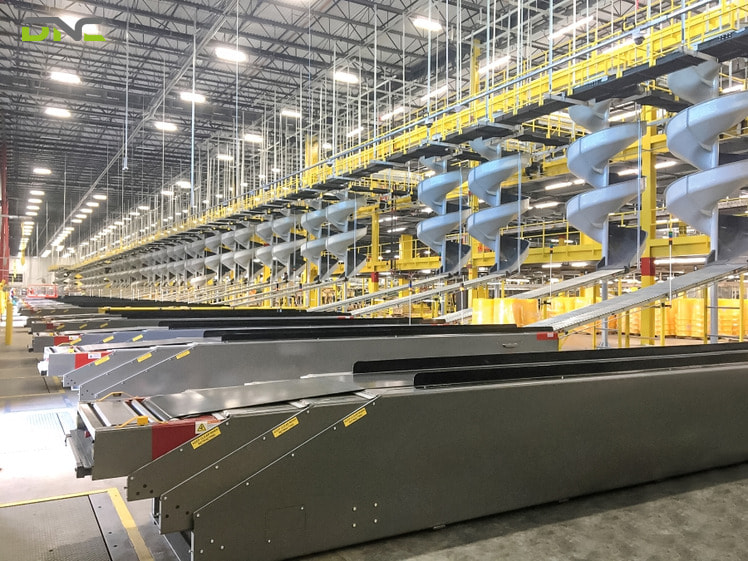

Telescopic Conveyors can be widely used in many different industries due to their flexibility, length adjustment and space saving.

Are Telescopic Conveyors Expensive or Cheap?

The price of Telescopic Conveyors on the market usually ranges from 10,000 to 20,000 USD. However, the price can vary depending on the following factors:

• System size: Large, long or high load capacity conveyor systems will cost more.
• Material: Materials such as stainless steel, PVC, or rubber will increase the cost. Stainless steel, because of its durability and corrosion resistance, is often more expensive than other materials.
• Motor power: Systems with large motor power (from 5.5kW to 15kW) will cost more than systems with low power.
• Features and technology: Long conveyor systems that integrate modern technology such as PLC, smart sensors and automation capabilities will increase the cost.

To know the exact price of Telescopic Conveyor suitable for your needs, you should contact the supplier directly for advice and receive a detailed quote.

Where to buy a reputable automatic telescopic conveyor?

If you are uncertain about where to purchase a telescopic conveyor, DNC Automation is an excellent option for you. Many customers have trusted DNC to provide automation solutions in the production process and have had positive experiences because:

• DNC is a leading technology, automation, and engineering company in Malaysia with over 15 years of experience in the field of automation
• System integration machinery, Internet of Things (IoT), Industry 4.0, and WinCC Scada System
• Diverse designs and sizes are suitable for many domestic and foreign houses. The equipment is 100% genuine and imported from Malaysia.

Please contact us via the hotline below if you have any questions about the product, we are happy to answer you!
