DNX-WR-203

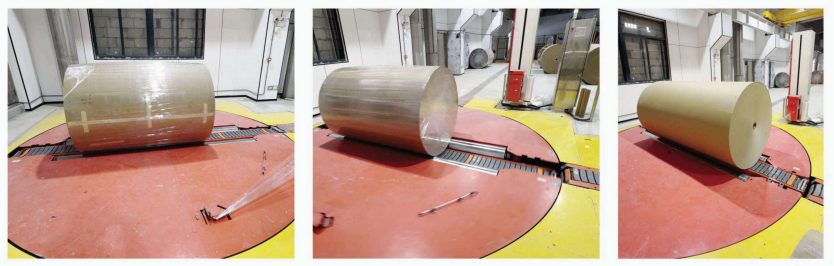

REEL WRAPPING MACHINE
Powered pre-stretch film carriage, ratio 150%
Automatic wrapping according to pre-set parameters. Friendly user interface for setting wrap cycles and film tension
Auto height detection, turntable home position, forklift sockets for easy moving
Roller speed variable through an inverter
Dual limit switches on top & bottom to provide better safety protections
| Wrapping Size | W(500-1600) mm × L(500-1500) mm |
|---|---|
| Packing Speed | 20–40 pieces/hour (depending on specific goods) |
| Loading Weight | 2000 kg |
| Turntable Speed | 0-15 rpm — speed variable, turntable soft start & stop |
| Turntable Height | 460 mm (Ejection Type: 530 mm) |
| Carriage Speed | 3 m/min |
| Control | PLC programmable control |
| Working Class | Automatic |
| Power | 3.4 KW |
| Machine Voltage | 380V, 50/60Hz, 20A |
| Machine Dimensions | 2950 × 1800 × 2582 mm |
| Machine Weight | 1100 kg |
