//Turntable Pallet Wrapper

Turntable Pallet Wrapper

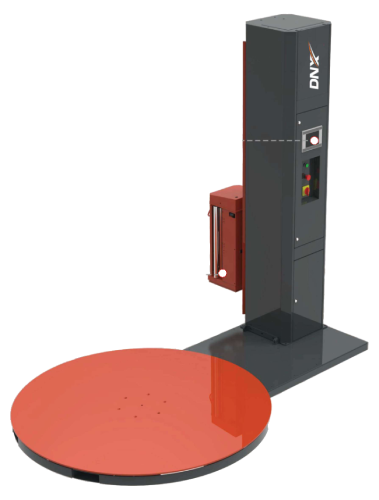

DNX-WR-206
PRE-STRETCHED PALLET WRAPPING MACHINE

PRODUCT PERFORMANCE

  • Consistent tension system provides perfect wrapping performance
  • Powered pre-stretch ratio up to 200%
  • 7″ touch screen can store 9 groups wrapping parameters
  • Safety device under carriage, more safety for operator
  • Dual chain structure inside column, carriage speed variable
  • Photoelectric sensor detect cargo height automatically
DNX-WR-206
DNXWR205

DNX-WR-205
With mechanical brake film carriage

DNX-WR-206-CR

DNX-WR-206-CR
With film capping, cutting & welding function

DNX-WR-206-P

DNX-WR-206-P
WIth top pressed function

DNX-WR-206-S

DNX-WR-206-S
With weighing function

DNX-WR-206-M

DNX-WR-206-M
With M type turntable

ramp

Ramp

Product Parameters

Loading Weight
2000 KG (max capacity)
Turntable Speed
0–15 rpm/min — speed variable, soft start & stop
Wrapping Height
2100mm / 2400mm / 2650mm customizable
Turntable Diameter
1500mm / 1650mm / 1800mm customizable
Pre-stretch Ratio
200% (1 meter stretch → 3 meters)
Carriage Speed
3 m/min
Packing Efficiency
20–30 pallets/hour
Power
1.5 KW
Machine Voltage
1PH 220V, 50/60Hz, 20A
Machine Weight
600 KG
Dimensions (L*W*H)
2565 × 1500 × 2535 mm
Control Method
PLC programmable control (advanced logic)
Working Mode
Auto / Manual — interchangeable operation

DNX-WR-207-CR
AUTOMATIC REMOTE CONTROLLED PALLET WRAPPING WITH TOP SHEET DISPENSER

PRODUCT PERFORMANCE

  • Two working mode choices: wrapping, or wrapping with top sheet dispensing
  • Clamping, cutting and welding film automatically
  • The top sheet dispenser pull, cut, and cover PE film automatically
  • Equipped with remote control device to achieve remote one-button control
  • Powered pre-stretch film carriage, ratio 150%
  • Intelligent touch screen, intuitive, easy to operate
  • Photoelectric induction, automatic sensing of cargo height, more intelligent
  • Dual limit switches on top & bottom to provide better safety protections.
DNX-WR-207-CR

DNX-WR-207-B
FULLY AUTO REMOTE CONTROLLED PALLET WRAPPING WITH TOP SHEET DISPENSER

DNX-WR-207-B

Product Parameters

Loading Weight
DNX-WR-207-CR: 2000 kg
DNX-WR-207-A: 1000 kg
DNX-WR-207-B: 2000 kg
Turntable Speed
0–15 rpm/min — speed variable, turntable soft start & stop
Wrapping Height
1800 mm
Pre-stretch Ratio
150% (1 meter stretch → 2.5 meters)
Carriage Speed
3 m/min
Top Dispensing Unit Lifting Speed
3 m/min
Top Sheet Pulling Speed
12 m/min
Cutting Method
Instant heater film cut-off (heater)
Packing Efficiency
20–30 pallets/hour
Power
3 KW
Voltage
3PH 380V, 50/60Hz, 20A
Machine Weight
1500 kg
Dimensions (L*W*H)
2960 × 2625 × 3100 mm
Control Method
PLC programmable control
Working Mode
Auto / Manual — interchangeable
