DNX-WR-402
FULLY AUTO ROTARY ARM WRAPPING MACHINE
Scroll Down
//Rotary Arm Wrapper
Rotary Arm Wrapper
DNX-WR-402-D
FULLY AUTO ROTARY ARM WRAPPER WITH TOP SHEET DISPENSER
Automatic apply & cut film
Powered pre-stretch ratio: 150%
Automatic wrapping according to pre-set parameters.
Touch screen user interface for setting wrap cycles, top/bottom cycles & film tension.
Rotary arm home position, highly sensitive rotary brake system.
Other Options
DNX-WR-402-H
High speed rotary arm wrapper
DNX-WR-402-HT
High speed double rotary arms
DNX-WR-402-K
Apply & cut film from top
DNX-WR-402-P
With top pressed plate
Product Parameters
| Rotation Speed | 18 rpm — speed adjustable |
|---|---|
| Pallet Size | L1200 × W1200 mm |
| Wrapping Height | 1800 mm |
| Pre-stretch Ratio | 150% (1 meter stretch → 2.5 meters) |
| Carriage Speed | 3 m/min |
| Top Sheet Pulling Speed | 12 m/min |
| Top Sheet Film Size | W1700 mm — length adjustable |
| Film Cutting Method | Cutting by thermal fuse (heater wire) |
| Packing Efficiency | 20–40 pallets/hour |
| Power | 2.5 KW |
| Conveyor Height | 550 mm |
| Conveyor Speed | 0–12 m/min |
| Machine Voltage | 3PH 380V, 50/60Hz, 20A |
| Machine Weight | 1800 kg |

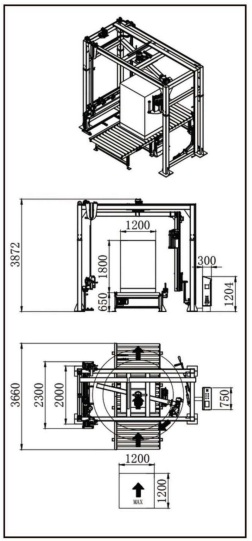

| Machine Dimensions | 3200 × 3220 × 3120 mm |
| Control Method | PLC programmable control with touch screen |
| Working Method | Fully automatic unmanned operation |
| Air Pressure | 0.4–0.7 MPa |
