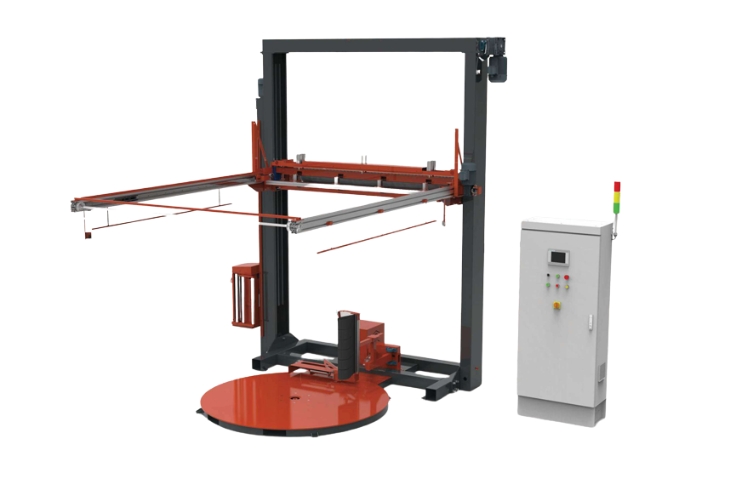

DNX-WR-207-CR
- Two working mode choices wrapping, or wrapping with top sheet dispensing
- Clamping, cutting and welding film automatically
- The top sheet dispenser pull, cut, and cover PE film automatically
- Equipped with remote control device to achieve remote one-button control
- Powered pre-stretch film carriage, ratio 150%
- Intelligent touch screen, intuitionistic, easy to operate
- Photoelectric induction, automatic sensing of cargo height, more intelligent
- Dual limit switches on top & bottom to provide better safety protections
Description
| Item | Specifications |
| Loading Weight | DNX-WR-20R-C: 2000kg / DNX-WR-20R-A: 1000kg / DNX-WR-20R-B: 2000kg |
| Turntable Speed | 0–15 rpm, speed variable, turntable soft start & stop |
| Wrapping Height | 1800 mm |
| Pre-stretch Ratio | 150% |
| Carriage Speed | 3 m/min |
| Top Dispensing Unit Lifting Speed | 3 m/min |
| Top Sheet Pulling Speed | 12 m/min |
| Cutting Method | heater |
| Packing Speed | 20–30 pallets/h |
| Power | 3 kW |
| Voltage | 3PH 380V, 50/60Hz, 20A |
| Machine Weight | 1500 kg |
| Dimensions | 2960 × 2625 × 3100 mm |
| Control Method | PLC programmable control |
| Working Mode | auto/manual |
| Air Pressure | 0.4 – 0.7 MPa |
