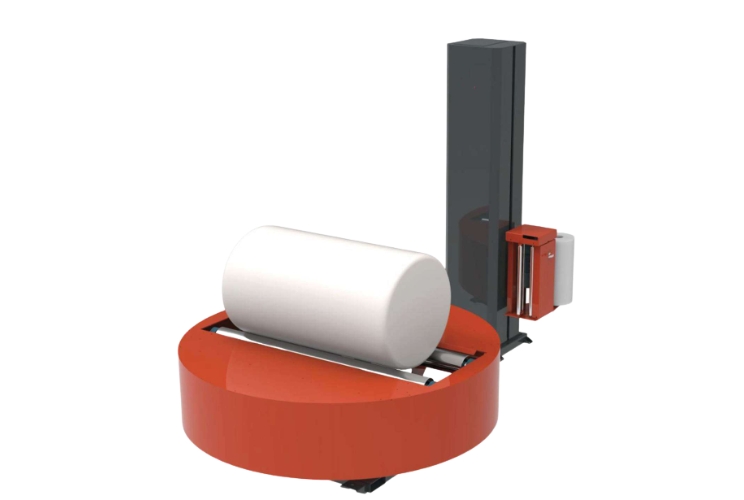

DNX-WR-203

Powered pre-stretch film carriage, ratio 150%
Intelligent touch screen, intuitive and easy to use
Automatic operation based on preset programs, with auto height detection and turntable reset
One-button wrapping operation, adjustable wrapping layers and film tension
Roller speed variable via inverter
Dual limit switches (top & bottom) for enhanced safety protection

Item	Specification
Wrapping Size	W(500-1600)mm * L(500-1500)mm
Packing Speed	20-40 pieces/hour (depending on specific goods)
Loading Weight	2000kg
Turntable Speed	0-15rpm/ speed variable, turntable soft start & stop
Turntable Height	460mm (Ejection Type: 530mm)
Carriage Speed	3m/min
Control	PLC programmable control
Class	automatic
Power	3.4KW
Machine Voltage	380V, 50/60HZ, 20A
Machine Dimensions	2950 * 1800 * 2582mm
Machine Weight	1100kg
