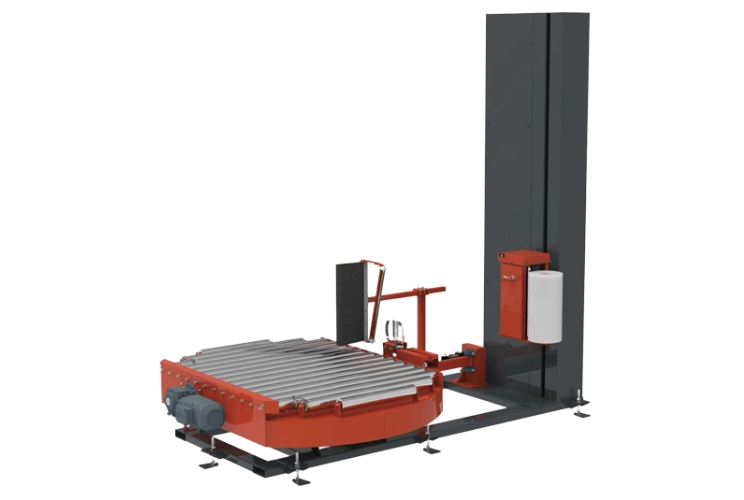

DNX-WR-303-B

Clamping, cutting and welding film automatically
Heavy duty slewing bearing structure for turntable, more stable and without noise
Powered pre-stretch film carriage, ratio 150%
Automatic wrapping according to pre-set parameters
Friendly user interface for setting wrap cycles, top/bottom cycles & film tension
Auto film brushing unit fitted to ensure film sticks to pallets perfectly after cutting

Item	Specifications
Pallet Size	L1200 × W1200 mm
Turntable Speed	0–15 rpm, speed variable, turntable soft start & stop
Wrapping Height	1800 mm
Loading Weight	MP303B: 2000 kg / MP303A: 1000 kg
Pre-stretch Ratio	150%
Turntable Height	550 mm
Carriage Speed	3 m/min
Packing Speed	15–30 pallets/h
Power	2.1 kW
Machine Voltage	3PH 380V, 50/60Hz, 20A
Machine Weight	1800 kg
Control	PLC programmable control
Working Method	fully auto unmanned
Air Pressure	0.4 – 0.7 MPa
