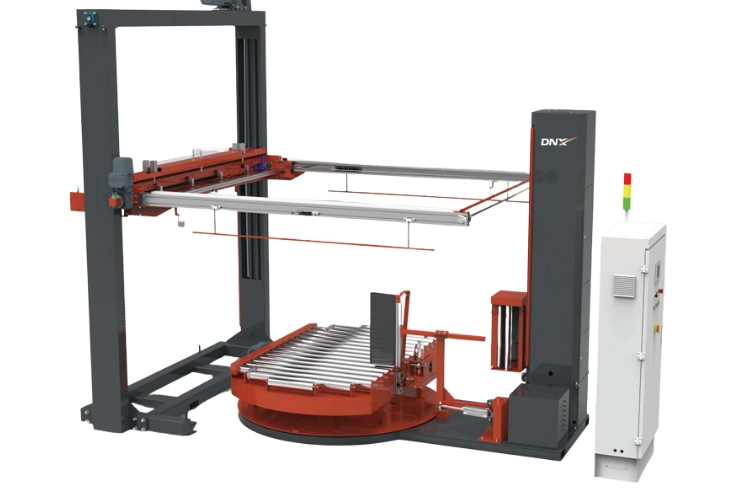

DNX-WR-303-A

Clamping, cutting and welding film automatically
Heavy duty slewing bearing structure for turntable, more stable and without noise
Powered pre-stretch film carriage, ratio 150%
Automatic wrapping according to pre-set parameters
Friendly user interface for setting wrap cycles, top/bottom cycles & film tension
Auto film brushing unit fitted to ensure film sticks to pallets perfectly after cutting
缠膜机自动上、断、拽膜；顶部覆膜机自动拉、切、覆膜
转台回转支承结构，平稳可靠，无噪音
缠膜动力预拉伸膜架，预拉伸可达150%（1米拉伸2.5米）
光电感测货物并自动完成缠膜及顶部覆膜操作，可预设缠绕层数、顶/底层缠绕圈数、越顶时间及贴膜张力
装有毛刷/胶皮拂膜机构，使拉伸膜完美贴合于托盘

项目 (中文)	English	参数 / Specifications
缠膜规格	Pallet Size	L1200 × W1200 mm
转台速度	Turntable Speed	0–15 rpm, speed variable, turntable soft start & stop
缠膜高度	Wrapping Height	1800 mm
转台承重	Loading Weight	MP303B: 2000 kg / MP303A: 1000 kg
预拉比	Pre-stretch Ratio	150% (1米拉伸2.5米)
转台高度	Turntable Height	550 mm
膜架升降速度	Carriage Speed	3 m/min
断膜方式	Cut Method	瞬间发热熔断 (heater)
包装效率	Packing Speed	15–30托盘/小时 (15–30 pallets/h)
机器功率	Power	2.1 kW
机器电压	Machine Voltage	3PH 380V, 50/60Hz, 20A
机器重量	Machine Weight	1800 kg
控制系统	Control	PLC programmable control
工作方式	Working Method	自动/无人化 (fully auto unmanned)
气动系统工作压力	Air Pressure	0.4 – 0.7 MPa
