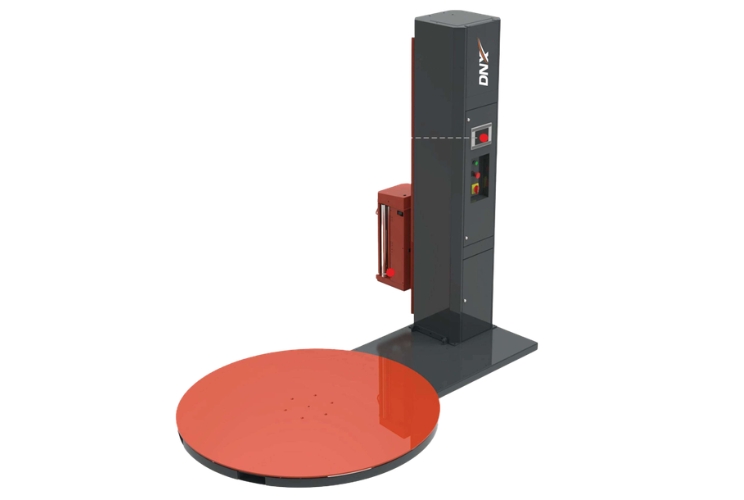

DNX-WR-206 恒张力预拉伸缠绕机
- 恒张力出膜系统，缠膜效果更完美
- 预拉比可达200%（1米拉伸3米），省膜更省钱
- 触摸屏操作界面，可存储9组不同的缠绕数据
- 膜架下方带有安全挡板，防止膜架砸伤操作者
- 双链条结构，膜架升降速度变频可调
- 光电自动感应货物高度
- Consistent tension system provides perfect wrapping performance
- Powered pre-stretch ratio up to 200%
- 7” touch screen can store 9 groups wrapping parameters
- Safety device under carriage, more safety for operator
- Dual chain structure inside column, carriage speed variable
- Photoelectric sensor detect cargo height automatically
Description
| Product Parameters | Specification |
| Loading Weight | 2000 KG |
| Turntable Speed | 0–15 rpm/min, speed variable, turntable soft start & stop |
| Wrapping Height | 2100 mm / 2400 mm / 2650 mm (customizable) |
| Turntable Diameter | 1500 mm / 1650 mm / 1800 mm (customizable) |
| Pre-stretch Ratio | 200% (1 m stretched to 3 m) |
| Carriage Speed | 3 m/min |
| Packing Speed | 20–30 pallets/h |
| Power | 1.5 kW |
| Machine Voltage | 1PH 220V, 50/60Hz, 20A |
| Machine Weight | 600 KG |
| Dimensions | 2565 × 1500 × 2535 mm |
| Control Method | PLC programmable control |
| Working Mode | Auto / Manual |
