//Carton Forming Bottom Sealing Machine
High Speed Case Erector
DNC-K30T
Package size: 280≤L≤500mm 160≤W≤400mm
130≤H≤400mm L+W≤900mm 220≤H+W/2≤600mm
Working speed: 20-30boxes/min
Machine size: L2500*W1450*H 1910mm
Power supply: 380V 50Hz
Air pressure: 6kgf/cm² , 450nl/min
Apply tape: W48-72mm
N.W/G.W: 1000kg/1150kg
Features
◆Carton Erecting, horizontal forming, bottom flaps folding and bottom tape sealing automatically
◆Carton erecting by CAM forming system
◆Ideally suited for high speed carton erecting
◆Working speed depends on the carton dimension
◆Alarm when lacks tape or case
◆It can be easily adjusted to fit for cartons of different sizes.

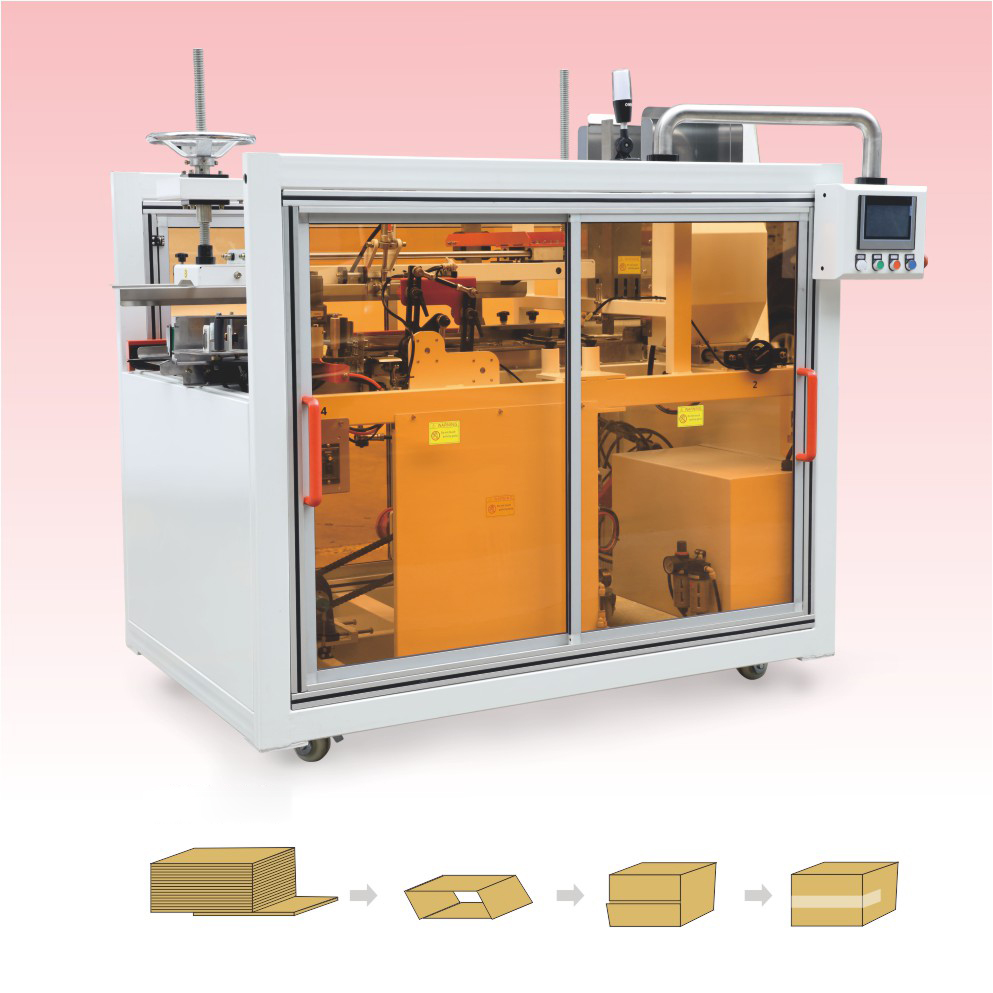

High Speed Case Erector
DNC-K30TDS
Package size :L:130-260 ,W80-150, H90-180mm
Working speed: 20 ~ 25 boxes / min
Machine Size:L1980mm×W1250mm×H1700mm
Shiping Size:L2300mm×W1450mm×H1900mm
Power supply: 3P 380V 50HZ 1.5KW
Air pressure: 6-8kgf/cm² 450nl/min
Apply tape:W45-48mm
N.W/G.W :800kg/1000kg
Features
◆The design and manufacture of the equipment meet the requirements of the process flow and plane layout of the production line, with beautiful appearance and good manufacturing process. Low power and water consumption, simple and fast operation, adjustment and maintenance, and the machine has good self safety protection function.
◆It has the automatic alarm function of tape or not, and has perfect mechanical, electrical protection and process protection functions.
◆Storage mechanism: at least 70-80 unformed cartons can be placed at one time (depending on the thickness of the carton), and can be supplemented at any time

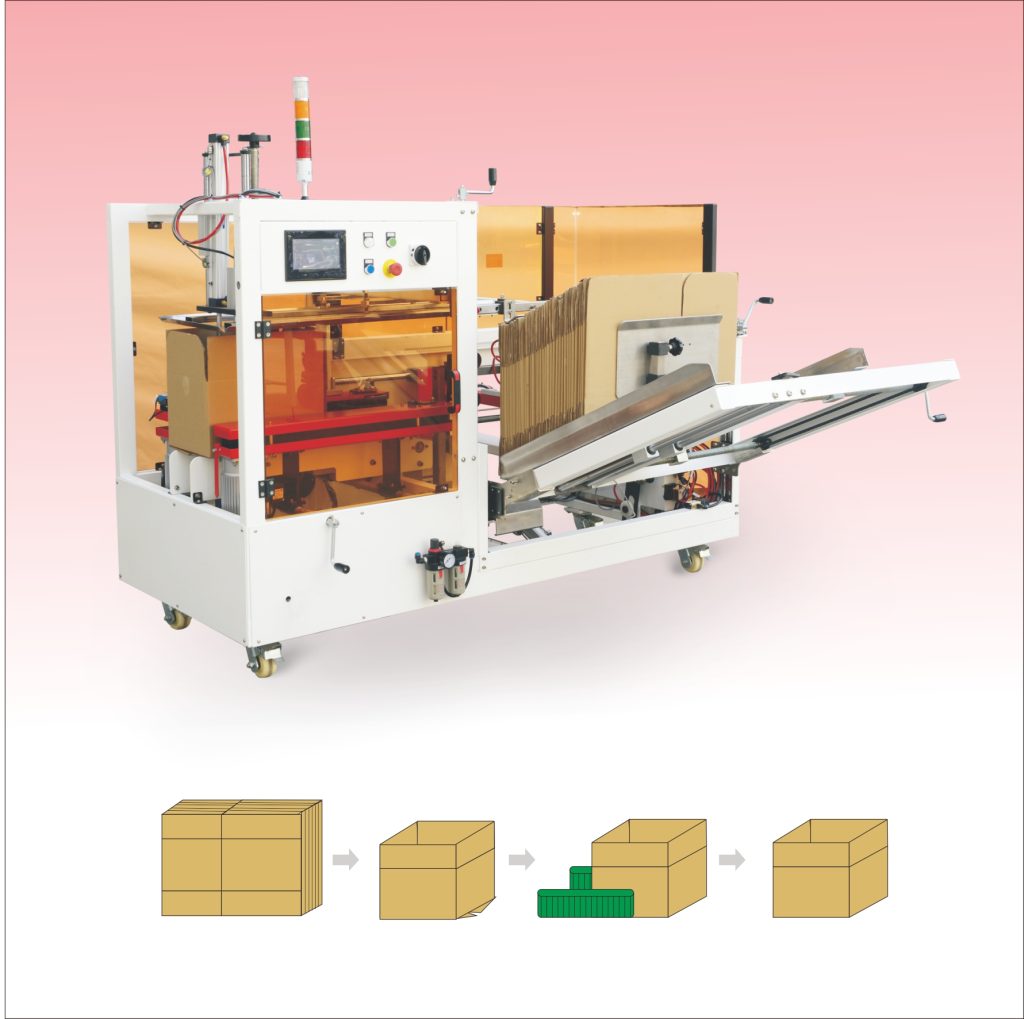

Nail type carton forming bottom sealing machine
DNC-K20TJ
Applicable size:
280≤L≤500mm
200≤W≤400mm
510≤L+W≤1000mm
300≤H+W/2 ≤520mm
Forming speed: 6~8 cases/min (depending on the number of nails)
Pole size: L2050*W1950*H1650mm
Applicable power supply: 220/380V 50Hz
Applicable air source: 6kgf/cm², 450nl/min
Power consumption: 0.4KW
Number of nails: two, three, four choose one
Machine weight: 400KG
Features
◆Automatic carton forming and bottom sealing machine with nailing function;
◆Adopt cylinder forming mechanism;
◆The forming speed depends on the size of the carton and the number of nails;
◆It can be distributed or operated by a single machine, and the suction box, forming, bottom folding, nailing and bottom sealing can be completed at one time;
◆With nail and carton shortage alarm function;
◆The carton storage is vertical, and empty cartons can be replenished at any time without stopping;
◆Suitable for batch use of cartons of the same specification at the same time, and manual adjustment when changing specifications;
◆Standard machine table height is 650mm;
◆The structure of the nail head is precise and firm, and it is a professional industrial automatic nail head;
◆In addition to standard specifications, non-standard customization is acceptable.
Case Erector
DNC- K20TDS
Package size: 160≤L≤300mm 90≤W≤200mm
90≤H≤200mm 250≤ L+W≤550mm
135≤H+W/2≤4 00mm
Working speed: 8- 10boxes/min
Machine size: L1900*W 1950*H1 450mm
Shipping size: L2000*W 1450*H1 580mm
Power supply: 220/380V 50Hz
Power output: 400W
Air pressure: 6kgf/cm2 , 450nl/min
Apply tape: W45mm
N.W/G.W: 400kg/500kg
Features
◆Carton Erecting, vertical forming, bottom flaps folding and bottom tape sealing automatically
◆ldeally suited for small boxes
◆Carton Erecting by air cylinder
◆Working speed depends on the carton dimension
◆Alarm when lacks tape or case
◆It can be easily adjusted to fit for cartons of different sizes

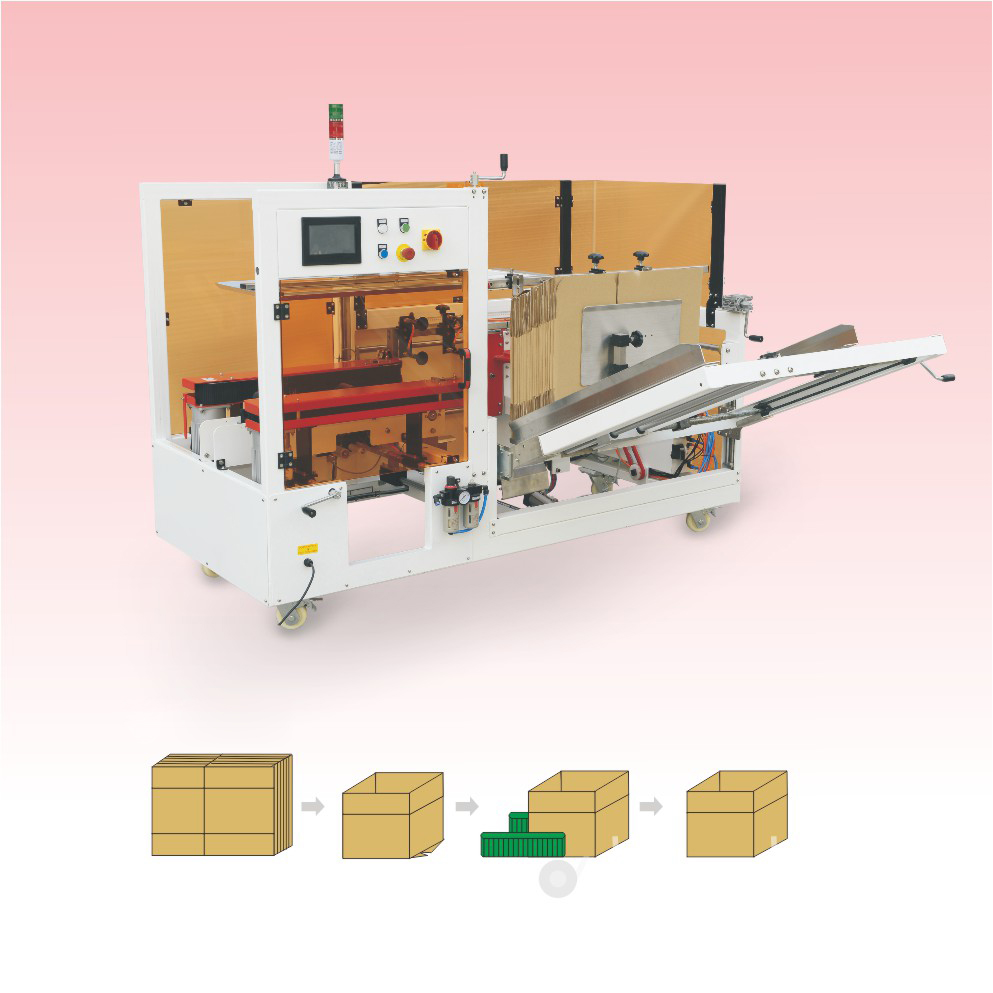

Case Erector
DNC- K20TX
Package size: 280≤L≤500mm 160≤W≤400mm
510≤L+W≤1000mm 300≤H+W/2 ≤620mm
Working speed: 8-10boxes/min
Machine size: L2050*W1950*H1450mm
Shipping size: L2230*W1450*H1580mm
Power supply:220/380V 50Hz
Power supply: 400W
Air pressure: 6kgf/cm2 , 450nl/min
Apply tape: W48-72mm
N.W/G.W: 400kg/500kg
Features
◆Carton Erecting, vertical forming, bottom flaps folding and bottom tape sealing automatically
◆Carton Erecting by air cylinder
◆Working speed depends on the carton dimension
◆Alarm when lacks tape or case
◆It can be easily adjusted to fit for cartons of different sizes

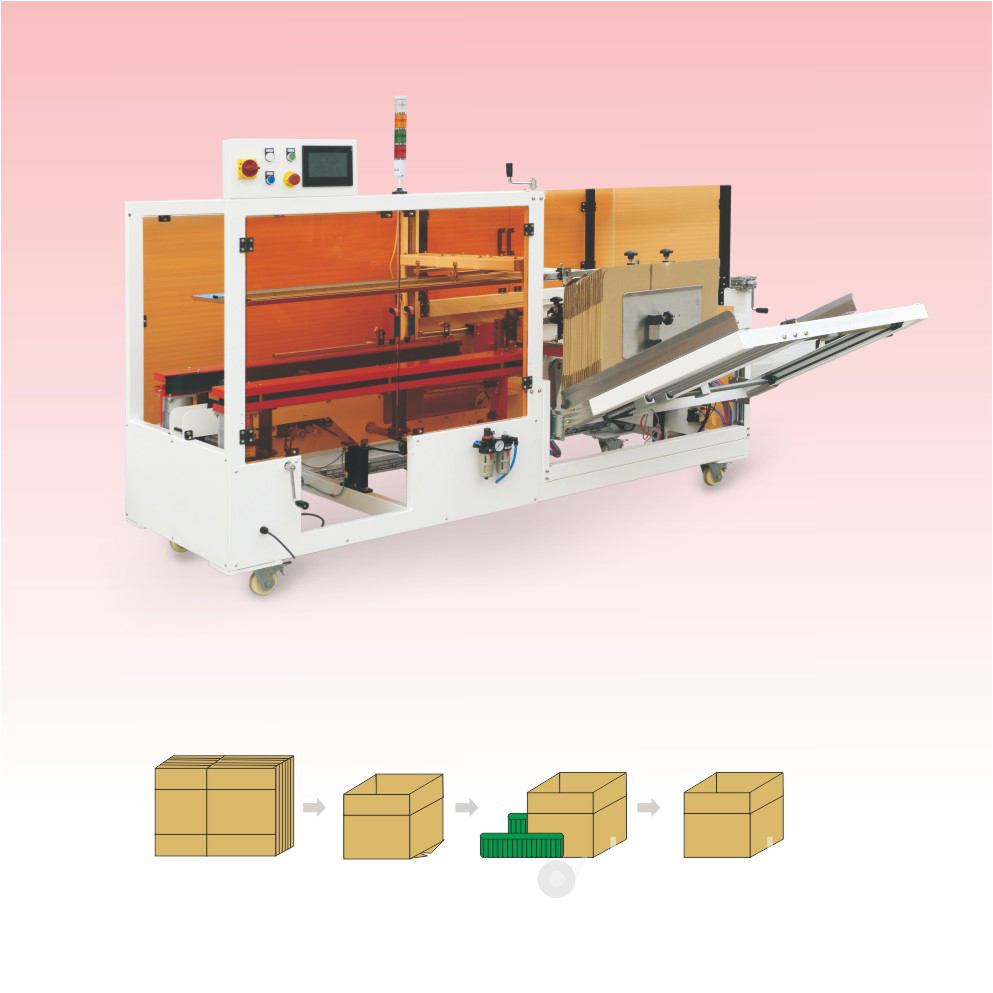

Medium Speed Case Erector
DNC- K20TK
Package size: 280≤L≤480mm 160≤W≤350mm
410≤L +W≤910mm 300≤H+W/2≤620mm
Working speed: 15-16 boxes/min
Machine size: L2500*W1 950*H 1450mm
Shipping size: L2630*W1450*H1 580mm
Power supply: 220/380V 50Hz
Power supply: 400W
Air pressure: 6kgf/cm2 , 450nl/min
Apply tape: W48-72mm
N.W/G.W: 550kg/650kg
Features
◆Carton Erecting, vertical forming, bottom flaps folding and bottom tape sealing automatically
◆Carton Erecting by air cylinder
◆Ideally suited for medium speed carton erecting
◆Working speed depends on the carton dimension
◆Alarm when lacks tape or case
◆It can be easily adjusted to fit for cartons of different sizes.
Hot Melt Glue Case Erector
DNC- K20TH
Pachage size : 300≤L≤500mm 200≤W≤400mm
500≤L+W≤900mm 300≤H+W/2≤620mm
Working speed: 10-12boxes/min
Machine size: L3000*W 1950*H1450mm
Shpping size: L3150*W1500*H1580mm
Power supply: 220/380V 50Hz
Power output: 400w (glue machine not included)
Air prssure: 6kgf/cm2, 450nl/min
Apply material: Granular hot melt
N.W/G.W: 400kg/500kg
Features
◆Hot melt glue carton erector
◆Carton Erecting, vertical forming, bottom flaps folding and bottom glue sealing automatically
◆Carton Erecting by air cylinder
◆Working speed depends on the carton dimension
◆Alarm when lacks case
◆It can be easily adjusted to fit for cartons of different sizes
